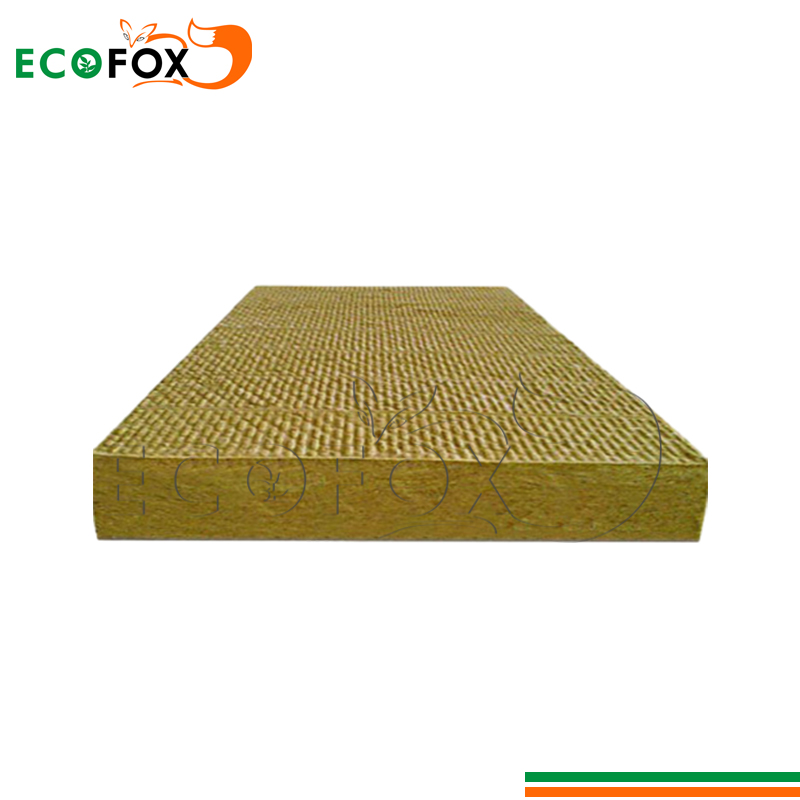

ECOFOX Mineral Rock Insulation
Density: 40-200 kg/m³
Thickness: 30-200 mm
Width: 600/1000/1200 mm
Length: 1000/1200/2400 mm
For other sizes, please email us to get the quotation.
ECOFOX®Mineral rock insulation is a robust and durable rock wool product, including rock wool board, rock wool blanket and rock wool pipe, specifically developed for thermal and sound insulation in high- and medium-temperature buildings. It fully complies with internationally recognized standards (such as GB11835, GB50264, EN14303, ASTM C612) and meets all performance testing requirements. It is suitable for thermal insulation and noise reduction of high-temperature boilers, storage tanks, flue gas ducts, and other high-temperature equipment.
| Property | Performance | Standard |
| Maximum Service Temperature | "750°C Outer foil temperature limited to 80°C" | ASTM C411 |
| Combustiblity | Non-combustible | ASTM E84 |
| Rigidity | Semi-Rigid | ASTM C1101 |
| Shot content | <25% by weight | ASTM C612 |
| Fungi Growth | Inhibit fungal growth | ASTM C665 |
| Corrosion Effect | Ph7 or slightly Alkaline | ASTM C692-77 |
| Thermal conductibility | <0.044 | ASTM C 518 |
| Compression resistance | 15 to 40 Kpa at 10% deformation | ASTM C165-07 |
| Water absorption | Water repellant Moisture sorption<1% by weight" | ASTM C1104 |
Please click the link to check the technical data.
| Length(mm) | Width(mm) | Thick(mm) | |
| EFRWB-80 | 1200 | 600 | 50-200 |
| EFRWB-100 | 1200 | 600 | 50-200 |
| EFRWB-120 | 1200 | 600 | 50-200 |
If you have any customization needs, please contact us.

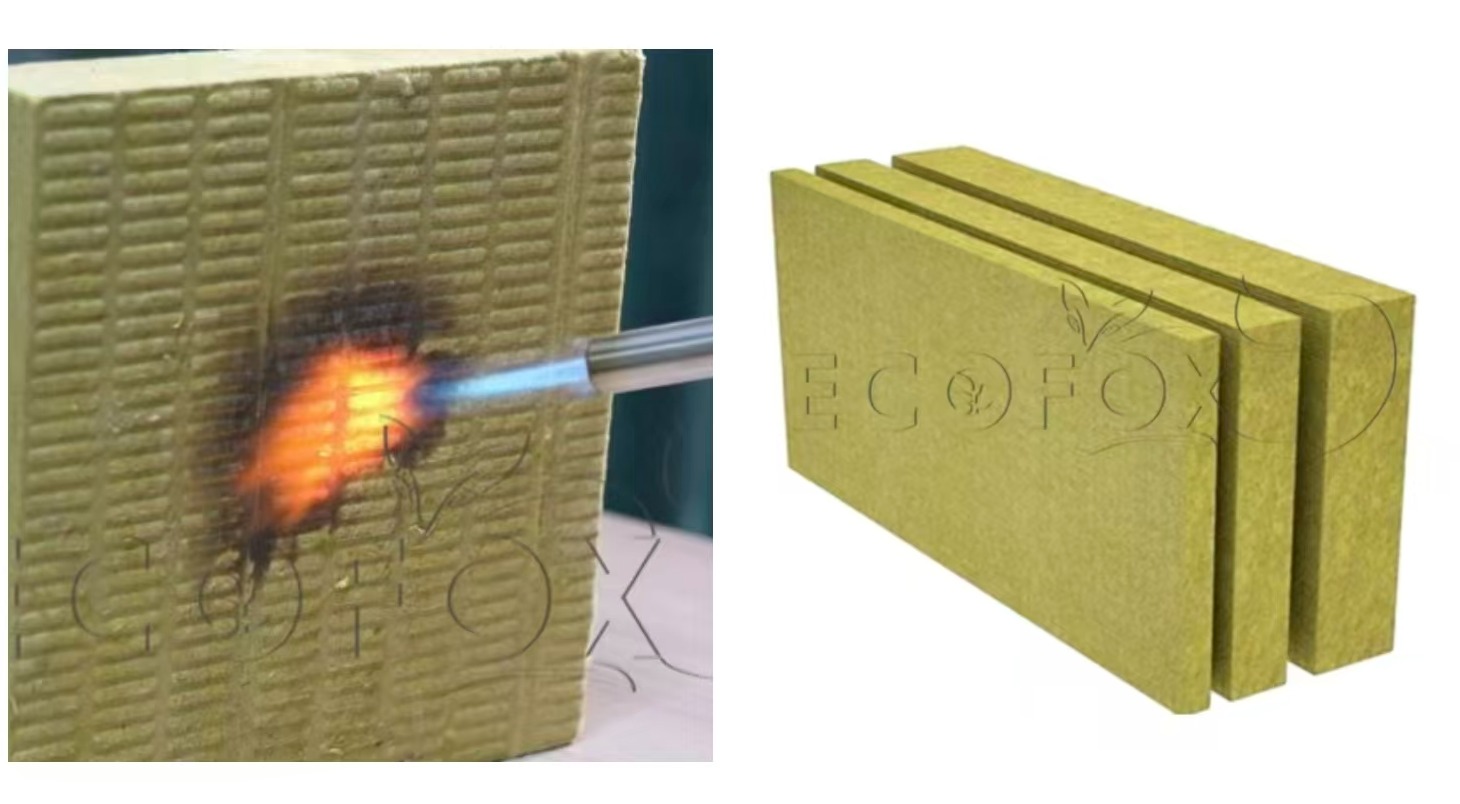

Fireproof and high temperature resistant Multiple thicknesses available

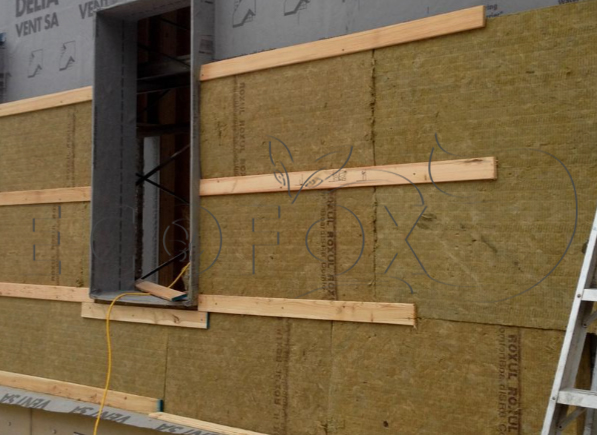

1.Suitable for building exterior walls
Our rock wool boards are suitable for exterior wall insulation in residential buildings, hospitals, schools, and other similar buildings. They offer excellent thermal insulation and fire resistance.
2.Industrial equipment and pipeline insulation
It wraps around high-temperature equipment such as boilers, steam pipes, storage tanks, and flues to reduce heat loss and improve energy efficiency.
3.Roof insulation and fireproof barrier
Rock wool boards are resistant to high temperatures, not easily bent, and have compressive strength that can withstand roof loads, making them suitable for large-span roofing systems such as industrial plants, large shopping malls, and airport terminals.
4.Fireproof sealing and fireproof partition
Used for fireproof sealing of cable wells, pipe wells, steel structure gaps, etc., suitable for places with extremely high fire protection requirements such as subways, tunnels, and high-rise buildings.

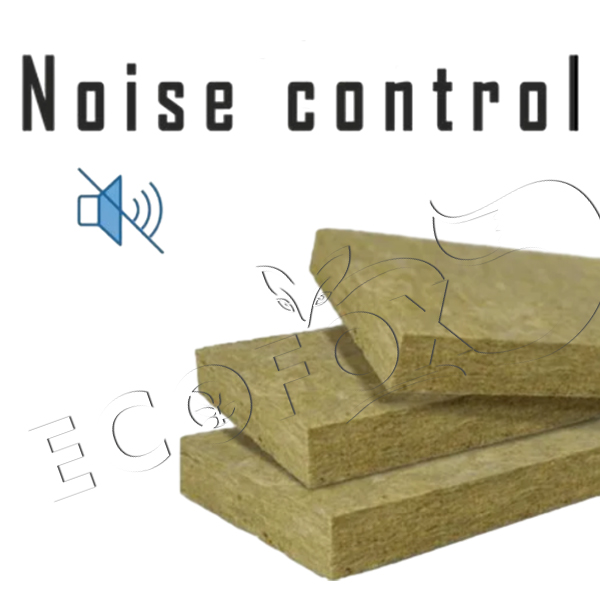

5.Sound absorption and noise reduction engineering
Suitable for recording studios, broadcasting studios, air conditioning rooms and other scenarios, the porous fiber structure of rock wool boards can effectively absorb mid-to-high frequency noise and is environmentally friendly and safe.
