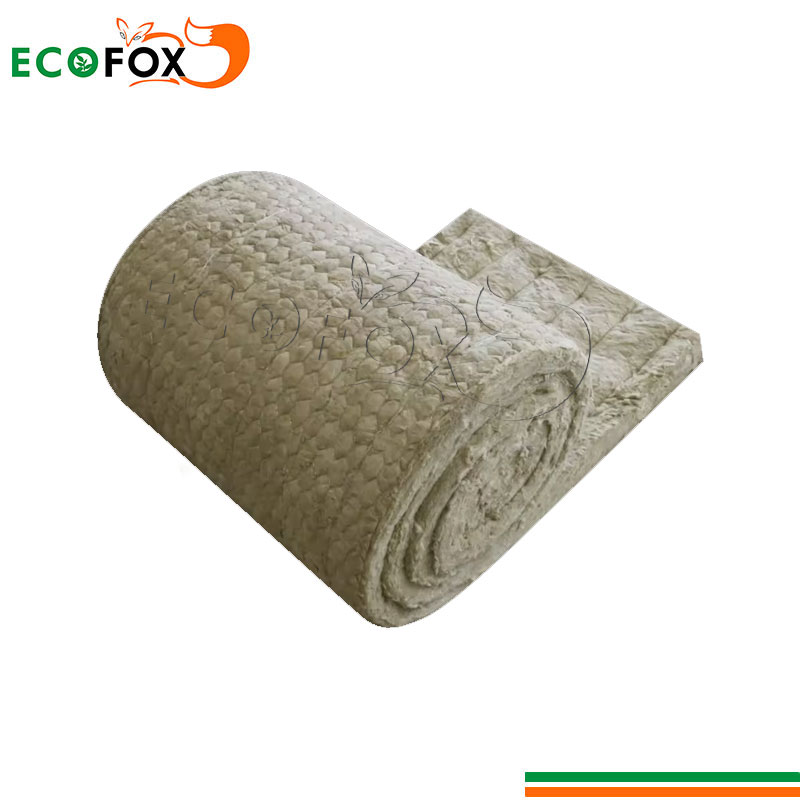

ECOFOX Industrial Reinforced Rock Wool Felt Rolls
Density: 80kg/m3 and 100kg/m3
Thickness: 25-100mm
Width: 600/1200mm
Length: 3000/5000mm
For other specifications, please email us or send an inquiry us.
ECOFOX® Industrial reinforced rock wool felt is a composite product of steel mesh or reinforced aluminum foil and rock wool felt. The product is flexible and easy to use. It has passed the metal corrosion test and can be safely used on various metal surfaces such as stainless steel. The reinforced layer effectively extends the service life of the product. The maximum operating temperature can reach 800℃, which is suitable for the insulation of various large-diameter circular industrial pipelines, storage buffers, containers, flue gas pipelines, etc. The online composite reinforced aluminum foil product is particularly suitable for the insulation of long-distance pipelines, which can effectively reduce the on-site installation steps, thereby saving installation time and costs.
Please click the link to check the technical data.
| Acidity coefficient | ≥2.0 |
| Slag ball content, % | ≤5.0 |
| Maximum operating temperature, ℃ | 800 |
| Heat load shrinkage temperature, ℃ | 600-650 |
| Chlorine and fluoride ion leakage | Pass |
| Chloride ion content | Optional (chloride ion content of low chlorine products ≤ 10ppm) |
| Water boiling resistance test | Pass |
| Combustion performance level | A1 |
| Hydrophobicity, % | 99.5 |
| Mass moisture absorption, % | ≤1 |
1. Thermal Insulation of Industrial Pipelines
Ideal for medium to high-temperature pipelines in power plants, chemical plants, and oil refineries.
2. Equipment and Tank Insulation
Used for insulating large industrial equipment, storage tanks, and reactors to prevent heat loss and improve energy efficiency.
3. Shipbuilding and Marine Applications
Applied in engine rooms and bulkheads to provide fire resistance, sound absorption, and thermal insulation in harsh marine conditions.
4. HVAC Systems in Industrial Buildings
Installed in ducts, air handling units, and ventilation systems to control temperature and reduce noise.
5. Power Plant Boilers and Furnaces
Provides thermal protection for boiler walls, chimneys, and high-temperature surfaces exposed to thermal cycling and vibration.
